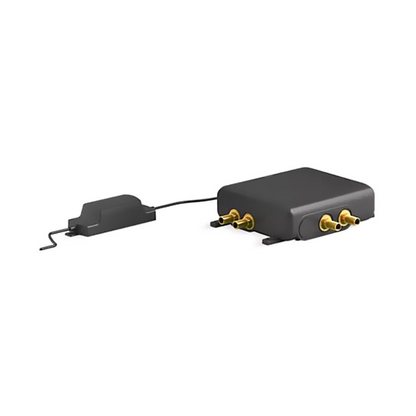

Digital thermostatic technology provides accurate, precise and consistent temperature and flow control in your showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required. Optional built-in eco mode lets you use just one outlet at a time to conserve water.

Digitally controlled thermostatic mixing valve.

Antiscald protection.

Built-in temperature and flow control.

Conserve water by enabling built-in eco mode, which limits use to only one outlet at a time.

Up to 12 gpm (45.4 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet.

Two independently controllable ½" outlets with brass tube connections.

Package Contents

Digital Thermostatic Valve, Filter screens (2), Jumper, Mounting hardware, Power supply unit

Required for operation

K-28214
